HENAN PROVINCE IVY POWER TECHNOLOGY CO.,LTD.

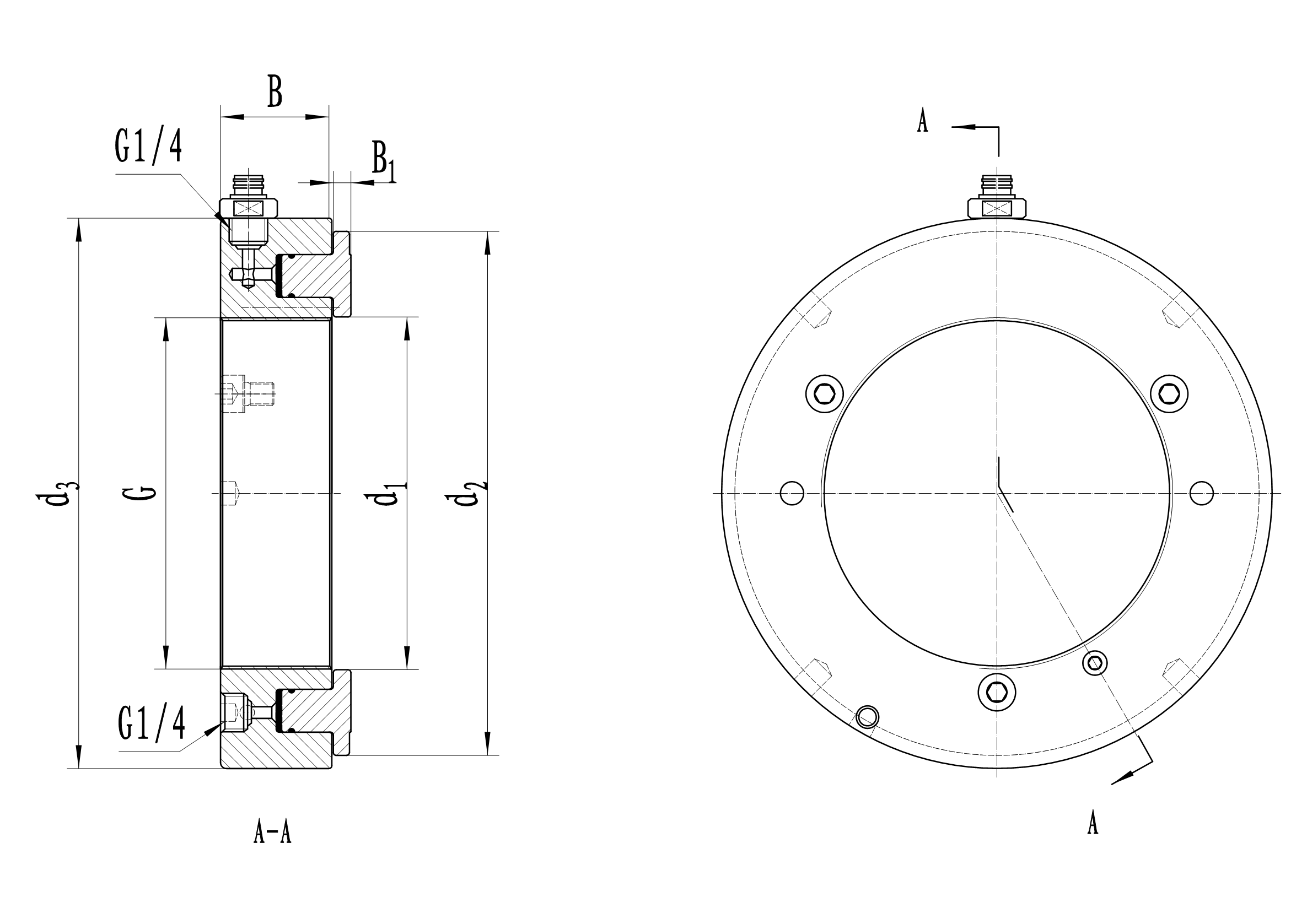

Item	Dimentions										重量
	G	Mid pitch	Threads per Inch	d₁	d₂	d₃	B	B₁	允许活塞位移	活塞区域	重量
	in	in	Threads per Inch	in	in	in	in	in			W.t (lb）
IV-HMVC 10E	1.967	1.9309	18	2	4.1	4.5	1.5	0.16	0.2	4.5	6
IV-HMVC 11E	2.157	2.1209	18	2.2	4.3	4.7	1.5	0.16	0.2	4.9	6.1
IV-HMVC 12E	2.36	2.3239	18	2.4	4.5	4.9	1.5	0.2	0.2	5.1	6.2
IV-HMVC 13E	2.548	2.5119	18	2.6	4.8	5.1	1.5	0.2	0.2	5.6	6.6
IV-HMVC 14E	2.751	2.7149	18	2.8	5	5.3	1.5	0.2	0.2	5.9	7.1
IV-HMVC 15E	2.933	2.8789	12	3	5.2	5.5	1.5	0.2	0.2	6.2	7.5
IV-HMVC 16E	3.137	3.0829	12	3.2	5.4	5.7	1.5	0.2	0.2	6.5	8.2
IV-HMVC 17E	3.34	3.2859	12	3.4	5.6	5.9	1.5	0.2	0.2	6.8	8.3
IV-HMVC 18E	3.527	3.4729	12	3.6	5.8	6.1	1.5	0.2	0.2	7.3	8.8
IV-HMVC 19E	3.73	3.6759	12	3.8	6	6.4	1.5	0.2	0.2	7.6	9.5
IV-HMVC 20E	3.918	3.8639	12	4	6.2	6.5	1.5	0.24	0.2	7.9	9.7
IV-HMVC 21E	4.122	4.0679	12	4.2	6.4	6.8	1.5	0.24	0.2	8.2	10.3
IV-HMVC 22E	4.325	4.2709	12	4.4	6.7	7	1.5	0.24	0.2	8.7	10.9
IV-HMVC 24E	4.716	4.6619	12	4.7	7	7.4	1.5	0.24	0.2	9.3	11.6
IV-HMVC 26E	5.106	5.0519	12	5.1	7.5	7.8	1.5	0.24	0.2	9.9	12.5
IV-HMVC 28E	5.497	5.4429	12	5.5	7.9	8.2	1.5	0.28	0.2	10.5	13.2
IV-HMVC 30E	5.888	5.8339	12	5.9	8.3	8.7	1.5	0.28	0.2	11.6	14.6
IV-HMVC 32E	6.284	6.2028	8	6.3	8.8	9.1	1.6	0.28	0.24	13.3	16.8
IV-HMVC 34E	6.659	6.5778	8	6.7	9.3	9.6	1.6	0.28	0.24	14.6	18.5
IV-HMVC 36E	7.066	6.9848	8	7.1	9.7	10.1	1.6	0.28	0.24	16	20.2
IV-HMVC 38E	7.472	7.3908	8	7.5	10.2	10.6	1.7	0.31	0.28	17.8	23.1
IV-HMVC 40E	7.847	7.7658	8	7.9	10.7	11.1	1.7	0.31	0.31	19.4	25.4
IV-HMVC 44E	8.628	8.5468	8	8.7	11.5	12	1.7	0.31	0.35	22.3	29.8
IV-HMVC 48E	9.442	9.3337	6	9.5	12.4	13	1.8	0.35	0.39	25.6	35.3
IV-HMVC 52E	10.192	10.0837	6	10.3	13.4	14	1.9	0.35	0.43	29.1	41.9
IV-HMVC 54E	10.604	10.496	6	10.7	13.9	14.5	1.9	0.35	0.47	30.7	45.2
IV-HMVC 56E	11.004	10.8957	6	11.1	14.3	15	1.9	0.35	0.47	32.7	48.5
IV-HMVC 60E	11.785	11.6767	6	11.9	15.2	15.9	2	0.39	0.55	36.6	56.2
IV-HMVC 64E	12.562	12.4537	6	12.7	16.1	16.9	2.1	0.39	0.55	40.8	65
IV-HMVC 68E	13.339	13.219	5	13.5	16.9	17.7	2.1	0.39	0.55	44	69.4
IV-HMVC 72E	14.17	14.05	5	14.3	17.9	18.6	2.2	0.39	0.59	48.5	78.3
IV-HMVC 76E	14.957	14.837	5	15	18.7	19.6	2.3	0.43	0.63	51.9	89.3
IV-HMVC 80E	15.745	15.625	5	15.8	19.6	20.6	2.4	0.43	0.67	56.9	100
IV-HMVC 84E	16.532	16.412	5	16.6	20.6	21.5	2.4	0.43	0.67	62	110
IV-HMVC 88E	17.319	17.199	5	17.4	21.4	22.3	2.4	0.47	0.67	65.9	119
IV-HMVC 92E	18.107	17.987	5	18.2	22.2	23.3	2.5	0.47	0.67	69.9	132
IV-HMVC 96E	18.894	18.774	5	19	23.1	24.1	2.6	0.47	0.75	75.3	139
IV-HMVC 100E	19.682	19.562	5	19.8	24	25	2.6	0.47	0.75	79.8	154
IV-HMVC 106E	20.867	20.722	4	20.9	25.4	26.4	2.7	0.51	0.83	87.1	174
IV-HMVC 112E	22.048	21.903	4	22.1	26.7	27.7	2.8	0.51	0.87	94.9	194
IV-HMVC 120E	23.623	23.478	4	23.7	28.4	29.4	2.9	0.51	0.91	104.3	220
IV-HMVC 126E	24.804	24.659	4	24.9	29.7	30.8	2.9	0.55	0.91	113	243
IV-HMVC 134E	26.379	26.234	4	26.5	31.3	32.5	3	0.55	0.94	123.2	265
IV-HMVC 142E	27.961	27.774	3	28	33.1	34.3	3.1	0.59	0.98	135.9	298
IV-HMVC 150E	29.536	29.349	3	29.6	34.8	35.9	3.1	0.59	0.98	147.6	322
IV-HMVC 160E	31.504	31.317	3	31.6	36.9	38	3.1	0.63	0.98	161	355
IV-HMVC 170E	33.473	33.286	3	33.5	39	40.2	3.3	0.63	1.02	177.6	399
IV-HMVC 180E	35.441	35.254	3	35.5	41.1	42.3	3.4	0.67	1.18	192.4	452
IV-HMVC 190E	37.41	37.223	3	37.5	43.2	44.3	3.4	0.67	1.18	210.3	481

Apply to： Supporting facilities for ports,metallurgy,coal mines,electric motors,textiles......and various mechanical manufacturing.
