Product Detail

MB、MBL

Share to：

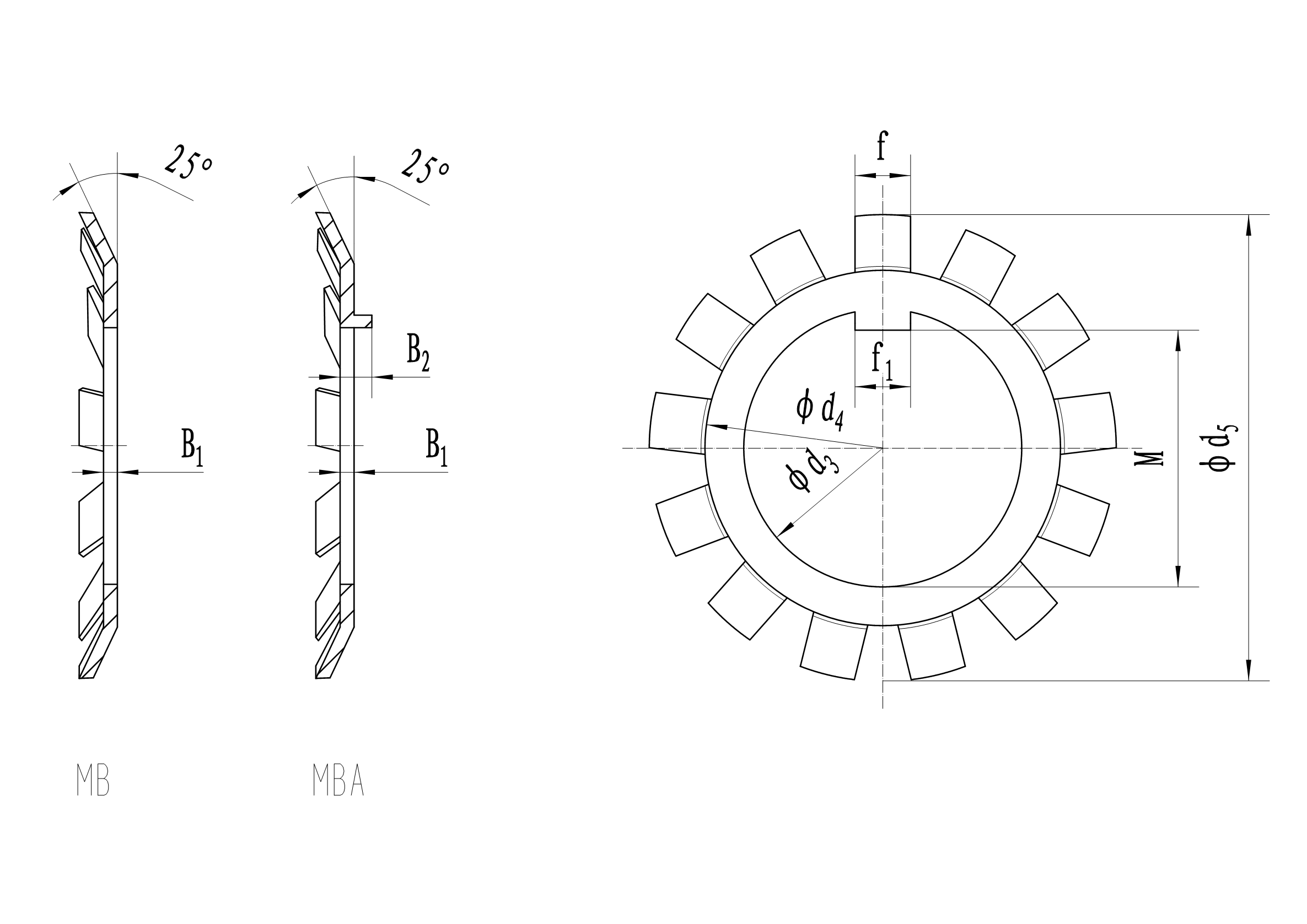

MB、MBL

Details

材质

Carbon steel

类型

GB

Item		Dimention								外爪数 n min
MB	MBA	d3	d4	d5	f1	M	f	B1	B2
MB	MBA	mm	mm	mm	mm	mm	mm	mm	mm
MB05	MBA05	25	32	42	5	23	5	1.25	4	13
MB06	MBA06	30	38	49	5	27.5	5	1.25	4	13
MB07	MBA07	35	44	57	6	32.5	5	1.25	4	13
MB08	MBA08	40	50	62	6	37.5	6	1.25	5	13
MB09	MBA09	45	56	69	6	42.5	6	1.25	5	13
MB10	MBA10	50	61	74	6	47.5	6	1.25	5	13
MB11	MBA11	55	67	81	8	52.5	7	1.5	5	17
MB12	MBA12	60	73	86	8	57.5	7	1.5	6	17
MB13	MBA13	65	79	92	8	62.5	7	1.5	6	17
MB14	MBA14	70	85	98	8	66.5	8	1.5	6	17
MB15	MBA15	75	90	104	8	71.5	8	1.5	6	17
MB16	MBA16	80	95	112	10	76.5	8	1.8	6	17
MB17	MBA17	85	102	119	10	81.5	8	1.8	6	17
MB18	MBA18	90	108	126	10	86.5	10	1.8	8	17
MB19	MBA19	95	113	133	10	91.5	10	1.8	8	17
MB20	MBA20	100	120	142	12	96.5	10	1.8	8	17
MB21	MBA21	105	126	145	12	100.5	12	1.8	10	17
MB22	MBA22	110	133	154	12	105.5	12	1.8	10	17
MB23	MBA23	115	137	159	12	110.5	12	2	10	17
MB24	MBA24	120	138	164	14	115	12	2	10	17
MB25	MBA25	125	148	170	14	120	12	2	10	17
MB26	MBA26	130	149	175	14	125	12	2	10	17
MB27	MBA27	135	160	185	14	130	14	2	10	17
MB28	MBA28	140	160	192	16	135	14	2	10	17
MB29	MBA29	145	171	202	16	140	14	2	10	17
MB30	MBA30	150	171	205	16	145	14	2	10	17
MB31	MBA31	155	182	212	16	147.5	16	2.5	12	19
MB32	MBA32	160	182	217	18	154	16	2.5	12	19
MB33	MBA33	165	193	222	18	157.5	16	2.5	12	19
MB34	MBA34	170	193	232	18	164	16	2.5	12	19
MB36	MBA36	180	203	242	20	174	18	2.5	12	19
MB38	MBA38	190	214	252	20	184	18	2.5	12	19
MB40	MBA40	200	226	262	20	194	18	2.5	12	19
MB44	MBA44	220	250	292	24	213	20	3	—	19
MB48	MBA48	240	270	312	24	233	20	3	—	19
MB52	MBA52	260	300	342	28	253	24	3	—	19
MB56	MBA56	280	320	362	28	273	24	3	—	19
MBL24	MBAL24	120	135	151	14	115	12	2	6	19
MBL26	MBAL26	130	145	161	14	125	12	2	6	19
MBL28	MBAL28	140	155	171	16	135	14	2	8	19
MBL30	MBAL30	150	170	188	16	145	14	2	8	19
MBL32	MBAL32	160	180	199	18	154	16	2.5	8	19
MBL34	MBAL34	170	190	211	18	164	16	2.5	8	19
MBL36	MBAL36	180	200	221	20	174	18	2.5	8	19
MBL38	MBAL38	190	210	231	20	184	18	2.5	8	19
MBL40	MBAL40	200	222	248	20	194	18	2.5	8	19

Apply to： Supporting facilities for ports,metallurgy,coal mines,electric motors,textiles......and various mechanical manufacturing.
